Inline Rocker Switch
The Prop and Scenery Lights PN: LLS1-3A is a simple, low-cost LED lighting rocker on/off switch. It is intended for low-voltage lighting applications utilizing DC barrel connectors.
The switch suits many lighting projects utilizing 12-volt and 24-volt DC power systems. It has 2.1mm X 5.5mm Plug DC barrel connectors. The switch can be used with our 8 AA cell 12 Volt DC battery holder. The switch can also be used with our terminal blocks to DC barrel connectors.

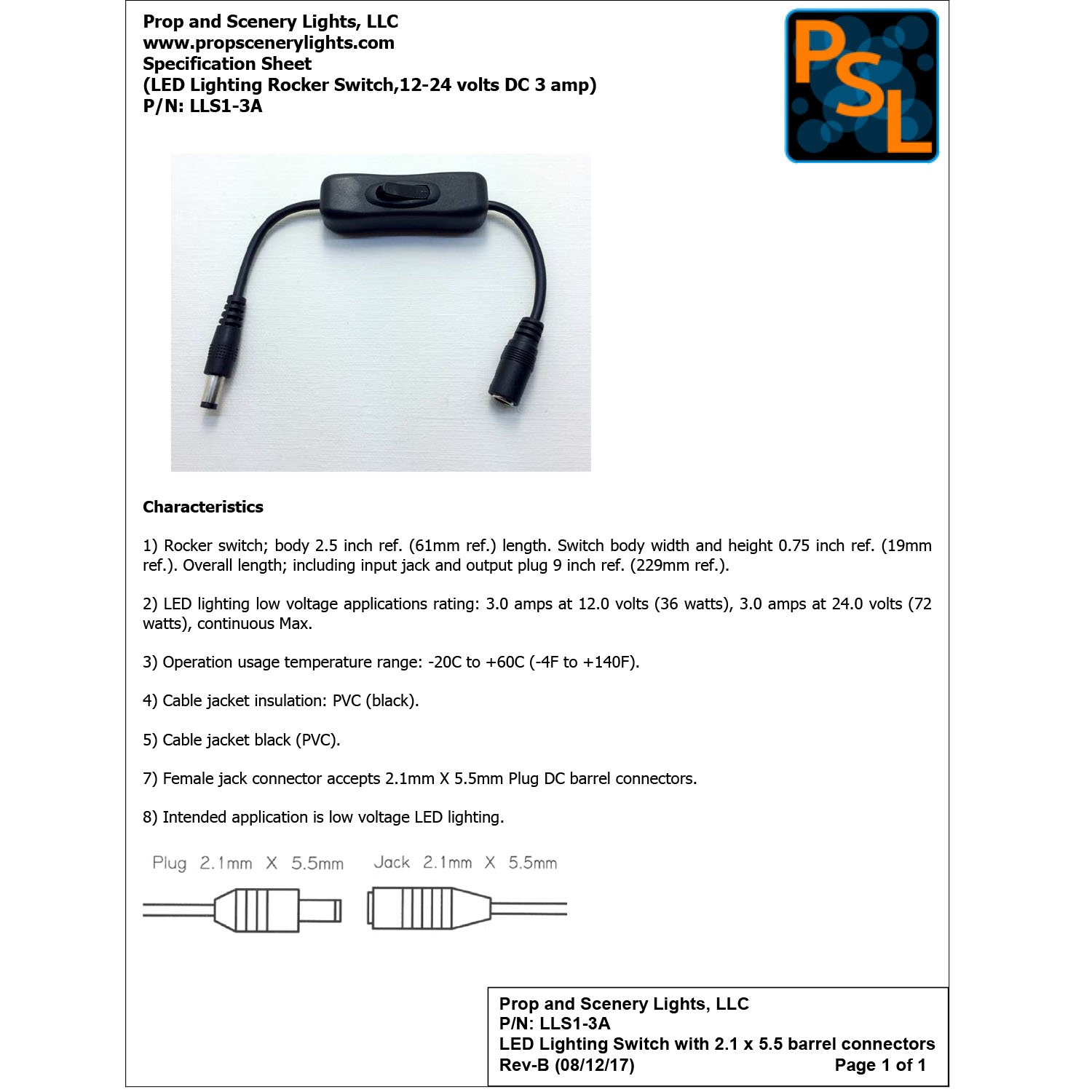

Characteristics
1) Rocker switch; body 2.5 inch ref. (61mm ref.) length. Switch body width and height 0.75-inch ref. (19mm ref.). Overall length, including input jack and output plug 9-inch ref. (229mm ref.).
2) LED lighting low voltage applications rating: 3.0 amps at 12.0 volts (36 watts), 3.0 amps at 24.0 volts (72 watts), continuous Max.
3) Operation usage temperature range: -20C to +60C (-4F to +140F).
4) Cable jacket insulation: PVC (black).
5) Cable jacket black (PVC).
6) Female jack connector accepts 2.1mm X 5.5mm Plug DC barrel connectors.
7) The intended application is low-voltage LED lighting.
